Lowest Cost – Cable Kits

$341.00 – $1,105.00

The HLZ floor heating cable system is the economical floor heating solution for the installer who prefer the flexibility and freedom of working with loose cable. It features; 1) twisted pair conductor heating cable, 2) polypropylene cable guides, 3) Thermostat – programmable or wifi programmable 4) an extra thermostat sensor and 5) a cable fault monitor. Suitable for installation over both plywood and concrete slab substrates. Heatlay cable floor heat kits utilize TRM cables and controls.

SKU: N/A Category: Tags: , ,

Description

Heatlay has carefully combined the best cable, control and accessory package to create the lowest cost 120V and 240V floor heat kits.

Heating Area
Kit Part Number 3 Pillar Spacing  2 / 3 / 2  Pillar Spacing Power Current Wire Length
12 W/sq.ft. 15 W/sq.ft. Watts Amps Feet
120V Cable
HLZ1-11 10.5 8 120 1 33
HLZ1-16 15.7 12 180 1.5 49.5
HLZ1-21 21 16 240 2 66
HLZ1-26 26.2 20 300 2.5 82.5
HLZ1-31 31.4 24.1 360 3 99
HLZ1-42 41.9 32.1 480 4 132
HLZ1-52 52.4 40.1 600 5 165
HLZ1-63 62.9 48.1 720 6 198
HLZ1-73 73.3 56.1 840 7 231
HLZ1-84 83.8 64.2 960 8 264
HLZ1-94 94.3 72.2 1080 9 297
HLZ1-105 104.8 80.2 1200 10 330
HLZ1-115 115.3 88.2 1320 11 363
HLZ1-126 125.7 96.3 1440 12 396
240V Cable
HLZ2-16 15.7 12.0 180 0.75 49.5
HLZ2-21 21 16.0 240 1 66
HLZ2-26 26.2 20.1 300 1.25 82.5
HLZ2-31 31.4 24.1 360 1.5 115.5
HLZ2-37 36.7 28.1 420 1.75 115.5
HLZ2-47 47.1 36.1 540 2.25 148.5
HLZ2-63 62.9 48.1 240 3 198
HLZ2-73 73.3 56.1 840 3.5 231
HLZ2-84 83.8 64.2 960 4 264
HLZ2-94 94.3 72.2 1080 4.5 297
HLZ2-105 104.8 80.2 1200 5 330
HLZ2-126 125.7 96.3 1440 6 396
HLZ2-147 146.7 112.3 1680 7 462
HLZ2-168 167.6 128.3 1920 8 528
HLZ2-189 188.6 144.4 2160 9 594
HLZ2-210 209.6 160.4 2400 10 660
HLZ2-231 230.5 176.5 2640 11 726
HLZ2-252 251.5 192.5 2880 12 792
Note:

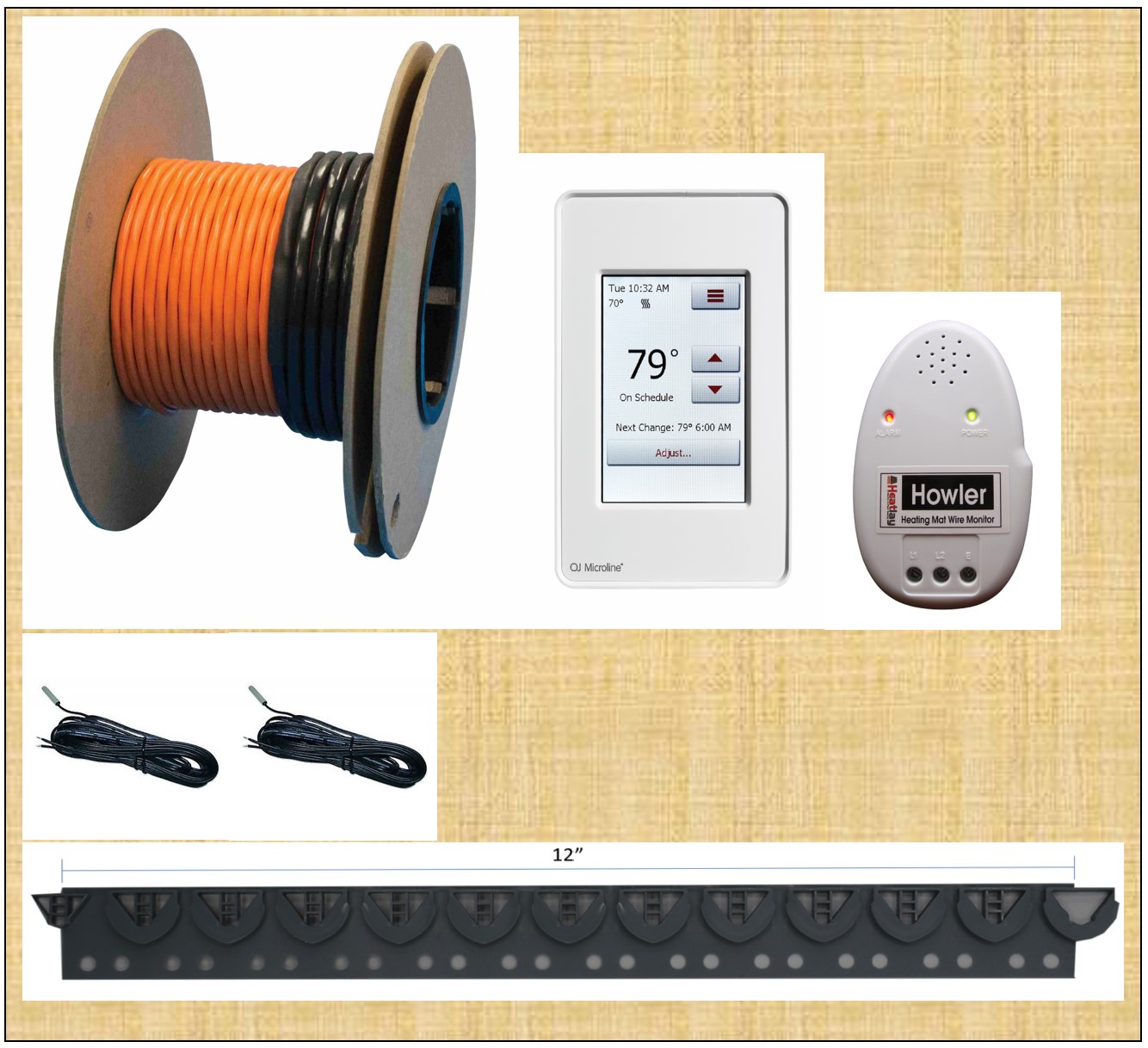

1) Heatlay HLCK Lowest cost cable kits include cable set, cable guides, thermostat, 2 in-floor sensors and a cable fault monitor.

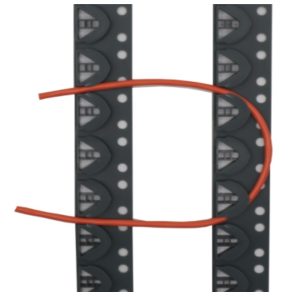

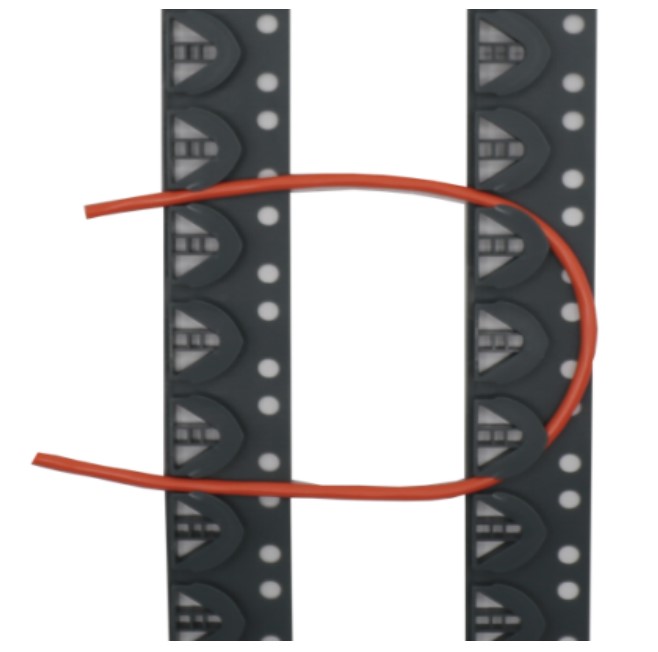

2) Cable guides included, 1′ segment sections.
3) Cold lead – 15 foot dual cable.
