Best Value – Cable and Membrane Kits

Price range: $473.00 through $1,818.00

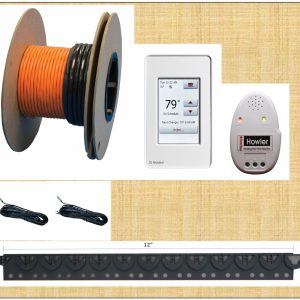

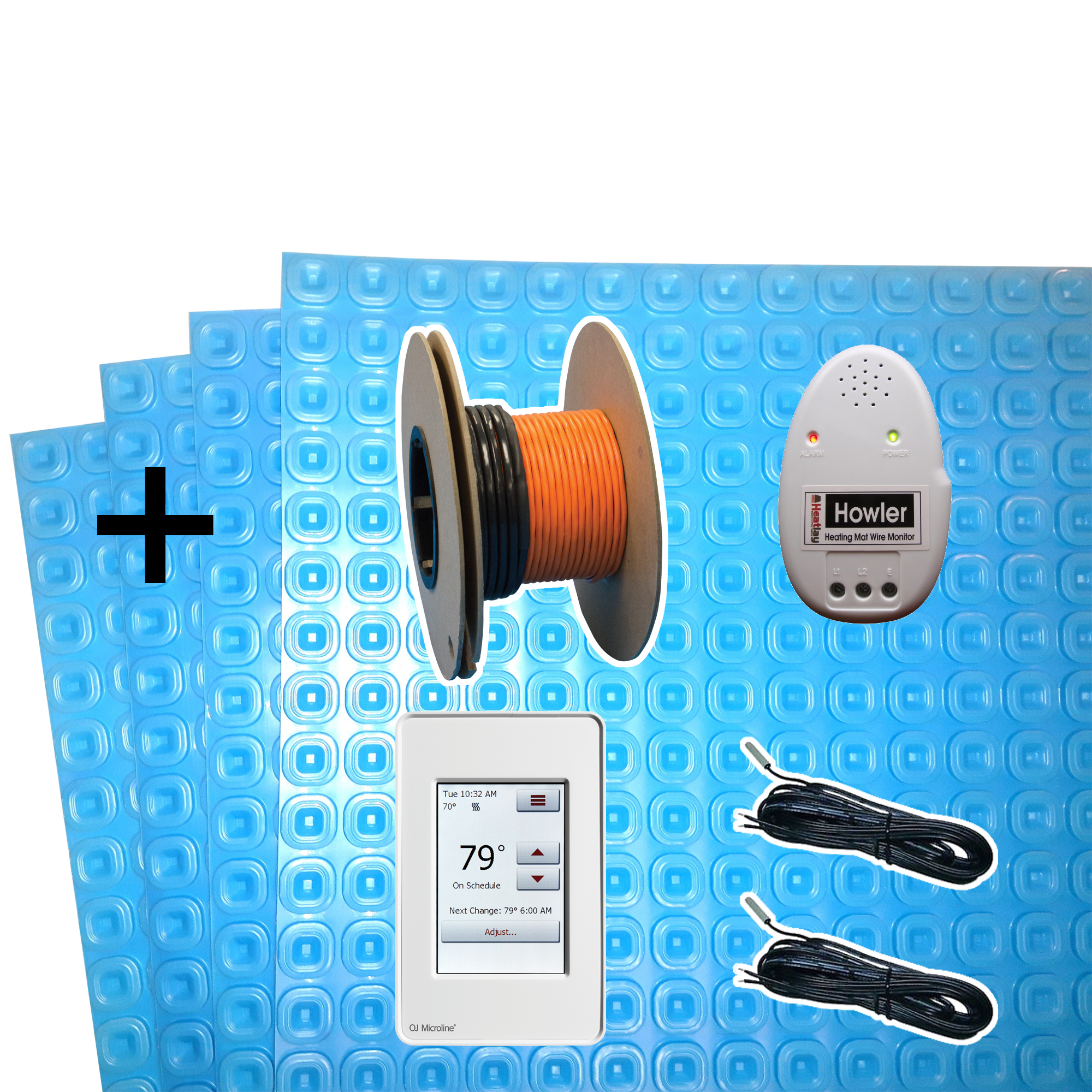

The HLCK Pro system is quick and easy to install, providing a complete system alternative for installers who prefer the flexibility and freedom of working with loose cable. It features; 1) twisted pair conductor heating cable, 2) polypropylene anti-fracture membrane, 3) Saswell GFCI programmable thermostat and 4) an extra thermostat sensor and 5) a cable fault monitor. Suitable for installation over both plywood and concrete slab substrates. An overall system thickness of only 5.5 mm (1/4″) minimizes floor height transitions. Heatlay floor heat kits utilize TRM cable sets and controls and Prodeso/Laticrete/Schluter or Mapei uncoupling membrane. The uncoupling membrane may extend the life of tile, marble, and stone floors.

SKU: N/A Category: Tags: , ,

Description

Heatlay has carefully combined the best products from cable, control and membrane manufacturing experts to create unbeatable online deals for 120V and 240V uncoupling membrane floor heat kits.

Heating Area
Kit Part Number 3 Pillar Spacing  2 / 3 / 2  Pillar Spacing Power Current Wire Length Total Membrane Area
12 W/sq.ft. 15 W/sq.ft. Watts Amps Feet Sq.Ft.
120V Cable
HLCK-1-11 10.5 8 120 1 33 18
HLCK-1-16 15.7 12 180 1.5 49.5 27
HLCK-1-21 21 16 240 2 66 36
HLCK-1-26 26.2 20 300 2.5 82.5 36
HLCK-1-31 31.4 24.1 360 3 99 45
HLCK-1-42 41.9 32.1 480 4 132 63
HLCK-1-52 52.4 40.1 600 5 165 72
HLCK-1-63 62.9 48.1 720 6 198 90
HLCK-1-73 73.3 56.1 840 7 231 99
HLCK-1-84 83.8 64.2 960 8 264 117
HLCK-1-94 94.3 72.2 1080 9 297 126
HLCK-1-105 104.8 80.2 1200 10 330 144
HLCK-1-115 115.3 88.2 1320 11 363 151
HLCK-1-126 125.7 96.3 1440 12 396 161
240V Cable
HLCK-2-16 15.7 12.0 180 0.75 49.5 27
HLCK-2-21 21 16.0 240 1 66 36
HLCK-2-26 26.2 20.1 300 1.25 82.5 36
HLCK-2-31 31.4 24.1 360 1.5 115.5 45
HLCK-2-37 36.7 28.1 420 1.75 115.5 54
HLCK-2-47 47.1 36.1 540 2.25 148.5 63
HLCK-2-63 62.9 48.1 240 3 198 90
HLCK-2-73 73.3 56.1 840 3.5 231 99
HLCK-2-84 83.8 64.2 960 4 264 117
HLCK-2-94 94.3 72.2 1080 4.5 297 126
HLCK-2-105 104.8 80.2 1200 5 330 144
HLCK-2-126 125.7 96.3 1440 6 396 161
HLCK-2-147 146.7 112.3 1680 7 462 188
HLCK-2-168 167.6 128.3 1920 8 528 215
HLCK-2-189 188.6 144.4 2160 9 594 242
HLCK-2-210 209.6 160.4 2400 10 660 269
HLCK-2-231 230.5 176.5 2640 11 726 300
HLCK-2-252 251.5 192.5 2880 12 792 322
Note:
1) Heatlay HLCK Best Value series floor heating kits include cable set, uncoupling membrane, thermostat, 2 in-floor sensors and a cable fault monitor.
2) Membrane supplied in sheet and-or roll format.
3) Cold lead – 15 foot dual cable.
TRM-Floor-Heating-Cable-and-membrane-manual-Nov21-2023_compressed extreme

https://heatlay.com/wp-content/uploads/2024/07/TRM-Floor-Heating-Cable-and-membrane-manual-Nov21-2023_compressed-extreme.pdf
